Description

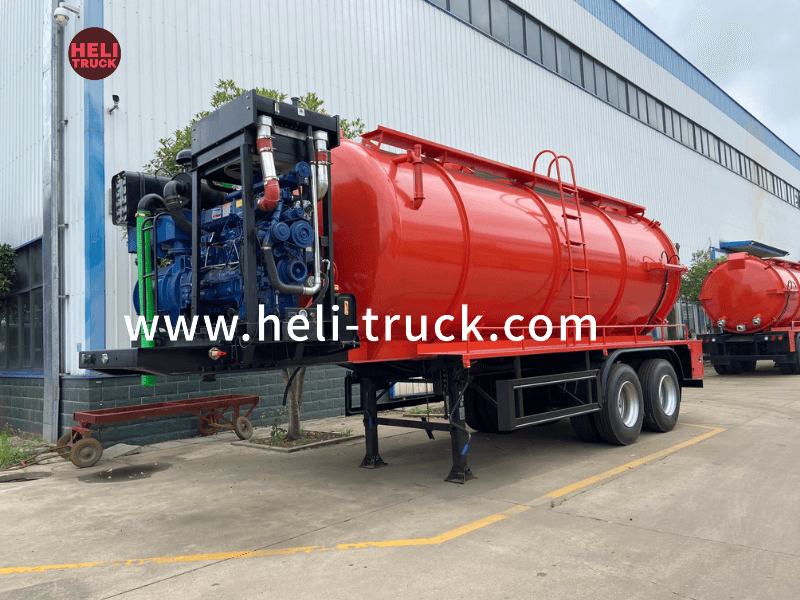

Vacuum tank semitrailers use suction to pull huge quantities of liquids, sludges, and other materials into the tank, typically cylindrical and constructed of aluminum, carbon steel, or stainless steel.
Vacuum tank semi-trailers are often equipped with a combination of pumping equipment, suction hoses, discharge valves, blowout connections, piping, drains, and motors or power take-off (PTO) systems for loading and unloading material from grease traps, treatment plants, manholes, drilling sites, and environmental spill sites.
In addition, these trailers are often equipped with manways, ladders, rear entry walkways, and stairs for easy, safe operator access. Hose trays, air ride and spring suspensions, stiffening rings, and tandem or triple rear axles are common.
Vacuum tank semi-trailer equipped with a diesel engine to power the trailer, the diesel engine is Cummins brand, with a maximum engine power of 140 horsepower.
The Italy Battioni Pagani vacuum pump has a suction speed of 8100 l/min.
| NO. | Item | Parameter |
| 1 | Name of trailer | sewage suction tanker trailer |
| 2 | Sewer tank volume | 23000 Liters |
| 3 | Sewage tanker axle | 3 / FUWA 11.5T |
| 4 | Tank material | Q235 |
| 5 | Tanker thickness | 8 mm |
| 6 | Separators inside thickness | 6 mm |
| 7 | Tail flange | 6-inch tail flange |
| 8 | Tow pins | FUWA 50 Prefabricated, ADR16634 240KN |
| 9 | Landing legs | JOST 28-19 inch |
| 10 | Plate spring | δ13×75-8 pcs |
| 11 | Tires (including spare tires) | 8 units / 11R22.5 |
| 12 | Rims | 8 units / 8025-22.5 |
| 13 | Brake system | EBS / WABCO |
| 14 | toolbox | 1 unit |
| 15 | Vacuum pump | Italy brand or Chinese brand |
| 16 | Drive Engine | Cummins brand, 140hp |
Tags: vacuum tank semi-trailer, sewage suction tank semi-trailer, vacuum tank trailer, vac tank trailer
