Description
Garbage compactor trucks play an important role in our daily lives. using garbage compactor trucks can greatly improve the efficiency of garbage collection and transportation, reduce labor costs, make the living environment cleaner, and reduce environmental pollution.

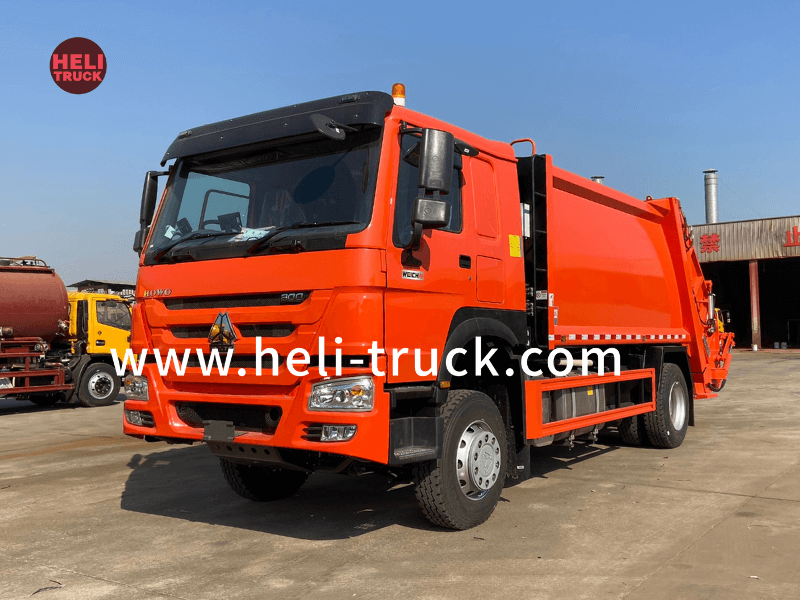

Why choose this Howo 4×2 16cbm refuse compactor truck?
1. This Howo 16cbm garbage compactor truck adopts a Sinotruk Howo high-quality chassis, with a maximum engine power of 300 horsepower.
2. The main components adopt China’s well-known brands which can ensure the garbage truck has good performance.
3. A dual wastewater collection tank is used to collect sewage generated during the garbage compression process
4. Simens PLC electronic control operating system
5. The body is constructed from high-tensile steel to ensure extreme durability and long operation life.
6. High compaction force, compaction ratio is 2.5:1.
7. Double pump for simultaneous operation.
8. Various container lifting systems can be optional: Winch type, comb type, Trunnion type, and arm type.
9. We are a garbage compactor truck manufacturer, you can get a bottom price from us.
| SPECIFICATION | ||
| Product name | Howo 4X2 16 cbm refuse compactor truck | |
| Overall dimension (L x W x H) | 9260×2400×3380 mm | |
| GVW(Kg) | 18000 (Kg) | |
| Curb weight | 7200 (Kg) | |
| Rated load weight | 10930 (Kg) | |
| Chassis Specification | ||
| Cabin | Single row and a half, 3 seats, air conditioner | |
| Drive Type | 4×2 | |
| Wheelbase | 4600 mm | |
| Engine | Model | WP10.300E22 |
| Maximum horsepower | 300 hp | |
| Displacement | 9726 cc | |
| Type | Diesel, 6 cylinders in-line, inter-cooled turbocharged | |
| Gearbox | Manual, 10 forwards, and 2 reverse | |
| Tires | 295/80R22.5, 6+1 pieces | |
| Upper body specification | ||
| Body capacity | 16 cubic meters | |
| Materials | 5mm Q345 high-tensile steel | |
| Fill hopper capacity | 1.2 cbm | |
| Sewage tank | 200 liters | |
| Filling work cycle time | 20~25 s | |
| Discharge model | Horizontal Ejection | |
| Control system | Electrically hydraulic control
Manual hydraulic control |
|
| Control panel | English or your language | |
| All standard accessories: Dust bin lifter, ladder, warning lights, emergency stop button, handrail, fire extinguisher, basic tool kit, English manual…. | ||
| Optional | ** Back alarm and Camera can be equipped.
** Italy multi-valve can be chosen. **240L (single bin or double bin) or standard 660L, 1100l bins with bin lifter can be choose. |
|
