Description

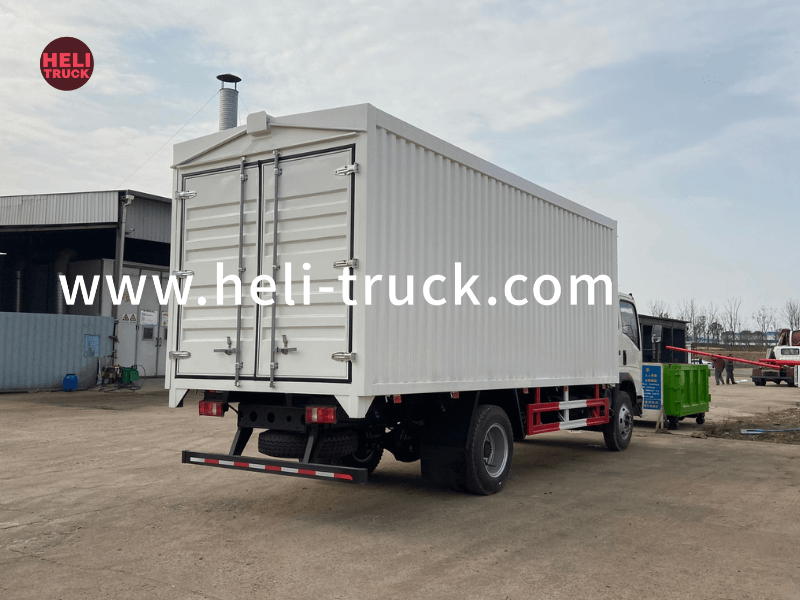

The sideboard can be turned over, making side loading and unloading easy. The van body can be made of iron corrugated plate or aluminum alloy.
Wing opening type: Opened by hydraulic system, opening angle ≤78°; the lower part of the tank is arranged outside the longitudinal beams of the two sub-frames;The operation switch is arranged under the rear, with a cassette.
Double wing: Outer skin 0.8mm aluminum alloy corrugated plate + steel frame + inner plate 0.6mm galvanized plate; solid rivets on the outside;
1 strip (galvanized piece) is attached from the front to the back in the middle of the inner side of the wing;
The outer rivet spacing of the outer aluminum alloy corrugated board on the outer side of the wing is 50mm
Front wall: No outer skin, steel frame + inner plate is 1.5mm iron plate.
Top: 0.8mm aluminum alloy plate + steel frame + 5mm white waterproof plywood, the top of the center beam is a poncho structure.
Rear wall: 1. Split rear door: 21mm laminate, open 2700, 6 hinges on one side;
2, locks: 4 sticks (2 on each side); 3, the rear hardware is stainless steel; 4, the rear tail lights need to be wrapped around.
The lower fence on each side: The lower fence is an aluminum alloy gusset, and the lower fences are double hinges;
One upper part of the inside of the lower fence is provided with a protective plate (galvanized piece) from front to back;
| Truck model | HLQ5100XSYSCZZ | |
| Truck make | Hubei Heli Special Automobile Manufacture Co., Ltd | |
| Condition | Brand new | |
| Production year | After client ordered | |
| Drive type | 4×2, Left-hand drive / Right-hand drive | |
| Wheelbase | 4500mm | |
| Cabin | Single row, 2 seats, power steering, option air conditioner | |
| Overall dimension (L*W*H) | 7995 x 2470x 3400 mm | |
| GVW | 18000 kg | |
| Curb weight | 7880 kg | |
| Rated payload weight | 9990 kg | |
| Engine / Moteur | Engine model | YC4E140-33 |
| Engine make | Yuchai power | |
| Rated power | 105 kw (140 hp) | |
| Displacement | 4260 ml | |
| Emission standard | Euro 2 | |
| Type | Diesel engine, 4-cylinders in line, 4-stroke supercharged inter-cooling. | |
| Gear box | Manual, 6-speed forward, 1-speed reverse | |
| Brake | Air brake | |
| Steering | Manual | |
| Front axle | 3.2 ton | |
| Rear axle | 8 ton | |
| Tire type | 8.25R20 | |
| Tire number | 6pcs +1 spare tire | |
| Van box dimension(inner)(LxWxH)(mm) | 6200x2300x2150 | |
| Van box material | Corrugated steel plate | |
