Are you looking for a bitumen sprayer truck? If so, we are the perfect supplier. Our factory can supply bitumen sprayer trucks with different tank capacities.

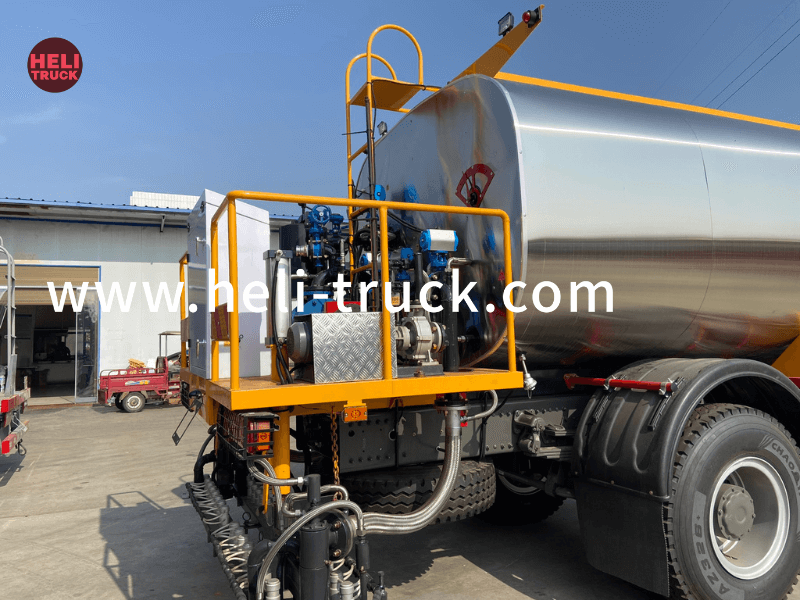

The Howo truck-mounted bitumen sprayer has a stainless steel tank, with a capacity of 12,000 liters, a heating system that can heat the bitumen to the required temperature, and a pumping system for delivering the heated bitumen to the spray nozzle at the desired pressure.
| Specification of Howo 12cbm bitumen sprayer truck | |
| Item No. | Parameters |
| Overall Dimension | 9997*2550*3200 mm |
| Drive model | 4×2, new condition, LHD /RHD |
| Gross weight | 18495kg |
| Curb Weight | 10665kg |
| Wheel Base | 4600 mm |
| Front/rear Overhang | 1032/1665(mm) |
| Front/rear Tread | 2105/4390 mm |
| Approach/Departure Angle | 19/15degree |
| Engine | WP10.300E200 |
| Engine horsepower | 300HP |
| Displacement | 9.726L(Diesel) |
| Maximum output power | 221kW |
| Emission Standards | Euro 2 |
| Max Driving Speed | 90 km/h |
| Gear Box | 10 Forward Gear, 2 Backward Gear |
| Tire | 12.00R20, 6 pieces with 1 spare tire. |
| Upper part | |
| Asphalt Tank | 12 cbm (12000liters) |
| Outside Material | Stainless plate |
| Insulation layer | ≤12ºC/8h,anti-corrosion and durable |
| Bitumen pump | QGB270; 270-300L/min,self-priming,self-discharge |
| Hydraulic System | |
| Hydraulic pump | CBQ540-L |
| Driving Motor | G5-16 |
| Control System | |
| Control Method | Manual control of each nozzle, achieving a substantially adjustable spray width. |
| Smart asphalt nozzle | 15 pcs (common nozzles) |
| Heating System | |
| Burner | G10/Italy brand diesel burner heating (100,000 kcal / hour), with automatic ignition and temperature control |
| Burner power supply | 24V Inverter |
| Spray medium | Emulsified asphalt |
| Spreading Width | 4m |
| Spreading Speed | 0.5~2L/m2 |
| Spreading Precision | ±2% |
| Optional equipment | Heat transfer oil (Spray hot asphalt needs) |
| Equipment performance characteristics | |
| 1. Arrange the various ladders and handrails under the premise of ensuring that other parts are not hindered from being repaired and dismantled, which is convenient for operation;
2, Vehicle-mounted rapid heating system (10-15 ° C / h), can improve heating efficiency and reduce construction assistance time to ensure asphalt temperature; 4. The manual spraying function can make the asphalt spray through the hand nozzle, which is flexible and convenient, and is suitable for small-scale and corner construction conditions. Pick up the hand spray gun. Open the total outlet valve, open the transfer valve, open the return valve, and use the return valve to adjust the pressure of the spray gun. |
|
