Description
Arm roll trucks hook and lift roll-off garbage containers placed at designated spots to transport them to landfills where the waste is dumped.

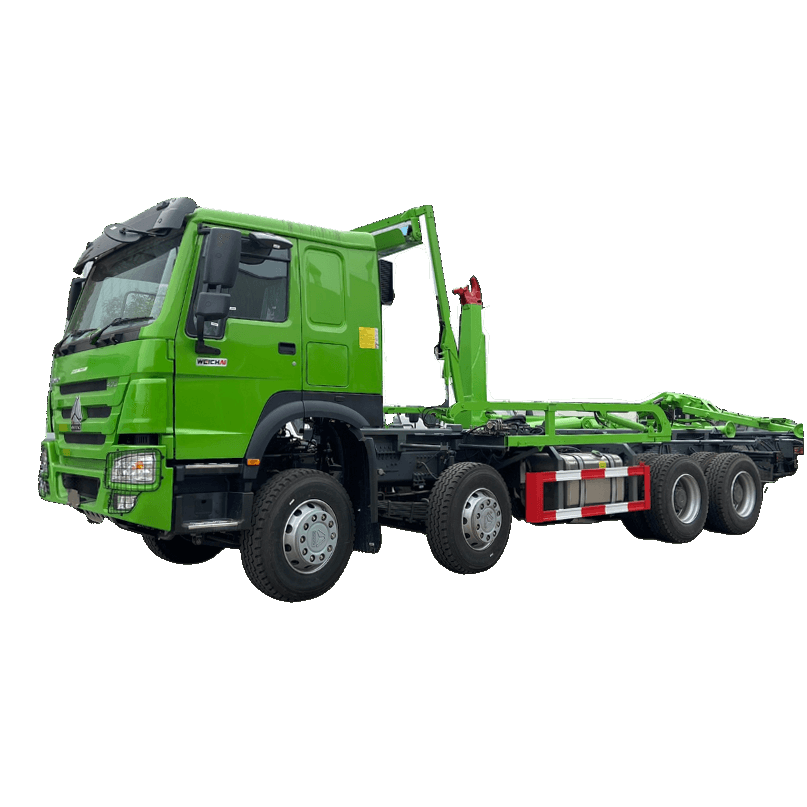

Why choose this Howo 26ton arm roll garbage truck
- Reliable, Durable
The chassis adopts the high-end chassis of Sinotruk Howo.

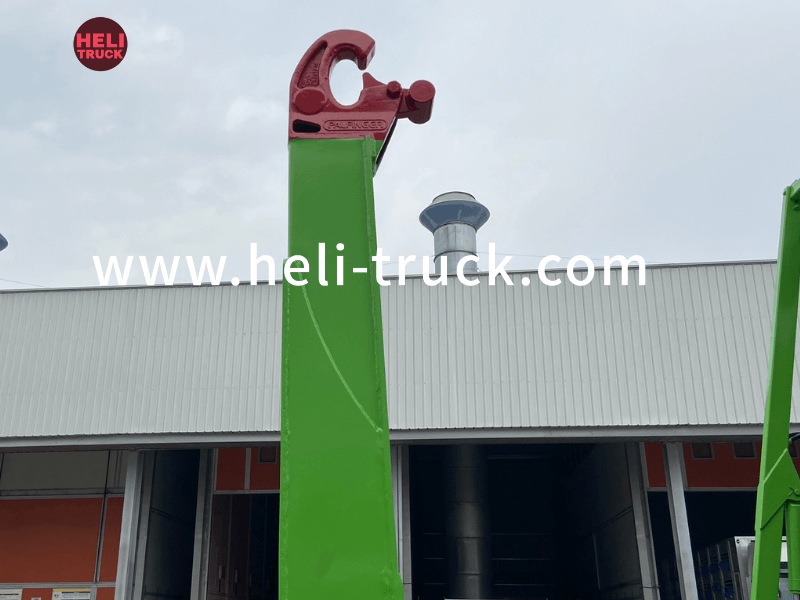

The hook lifting system adopts a well-known Palfinger brand with a maximum lifting capacity of 26 tons.
Engine – the vehicle is equipped with a Weichai engine with a maximum power of 400 horsepower.
- Cost-Effective
One vehicle can be used for garbage collection and transportation to multiple collection points.
| Cabin | One and a half cab.With A/C | |
| Vehicle Dimensions | Overall dimensions (L x W x H) mm |
8500×2550×3260 |
| Wheelbase (mm) | 1300+4375+1400 | |
| Wheel track (front/rear) (mm) | 1610/1505 | |
| Truck weight | Gross Weight | 25000 |
| Recommend payload | 13120 | |
| Front axle load capacity | 7-ton | |
| Rear axle load capacity | 16-ton | |
| Max. driving speed(km/h) | 102 | |
| Engine | Manufacture | Weichai Engine |
| Model | WP10.400E22 | |
| Type | Straight 6-cylinder in line, Turbocharge with inter-cooling, diesel engine | |
| Displacement(L) Engine power(hp) |
Engine displacement:9.726L Power:400HP |
|
| Emission standard | Euro 2 | |
| Gearbox | Manual operation, 10 forward gear, 2 reverse gear | |
| Steering | Hydraulic steering with power assistance | |
| Tire | 315/80R22.5, 12+1 pcs (including one spare tire) | |
Upper-Body Parameters:
| Garbage container effective volume(CBM) | About 12-20 cubic meter |
| The Hooking Capacity(T) | 26 |
| The Hook arm material | Q40, Q50 high-strength steel |
| System pressure(Mpa) | 26 |
| Control voltage(V) | 24 |
| The hook arm self weighs (kg) | 2300 |
| Extension of hook arm(mm) | 800-900, or other specifications based on a different model |
| Hydraulic Oil pump displacement(Min/L) | 60, made in China or import pump |
| Hydraulic oil tank capacity(L) | 110L or more |
| Loading/unloading cycle time(S) | 45S or less |
| The hook center height(mm) | 1570 or other specifications based on a different model |
| Distance from hook center to rear roller(mm) | 4630 or other specifications based on a different model |
| Width of guild rail(mm) | 1060 or other specifications based on a different model |
| Hydraulic oil pump | Hefei pump in China, or import pump |
