Description
Road sweepers are used to keep roads, sidewalks and other hard surfaces clean and free of debris.
Road sweepers use water spray nozzles to spray water onto the road surface. This helps to loosen particles and reduce dust in the air. An auxiliary engine is installed on the truck to power the vacuum pump.
Features:
The garbage bin (hopper) is made of stainless steel and has a capacity of 8 cubic meters.
The water tank is made of stainless steel and has a capacity of 3.8 cubic meters.
Double sweep, 4 brushes (2 each on the left and right sides), the sweeping disc speed can be adjusted in three independent speed levels
The auxiliary engine is Cummins brand with a maximum engine power of 140 horsepower.
The auxiliary engine and the fan are connected by an automatic centrifugal clutch, which ensures automatic disconnection from the fan when the auxiliary engine is started without load and when the auxiliary engine is stopped.
In an emergency station, the lifting and lowering actions of the garbage bin, suction nozzle, and sweeping disc can be controlled by the set manual pump.
Multiple safety alarm devices: low water level in the clean water tank, auxiliary engine water temperature, oil pressure, reversing reminder, hydraulic oil leakage alarm, rear door opening, and closing safety alarm.
Optional reversing camera.
| Truck Specification | ||

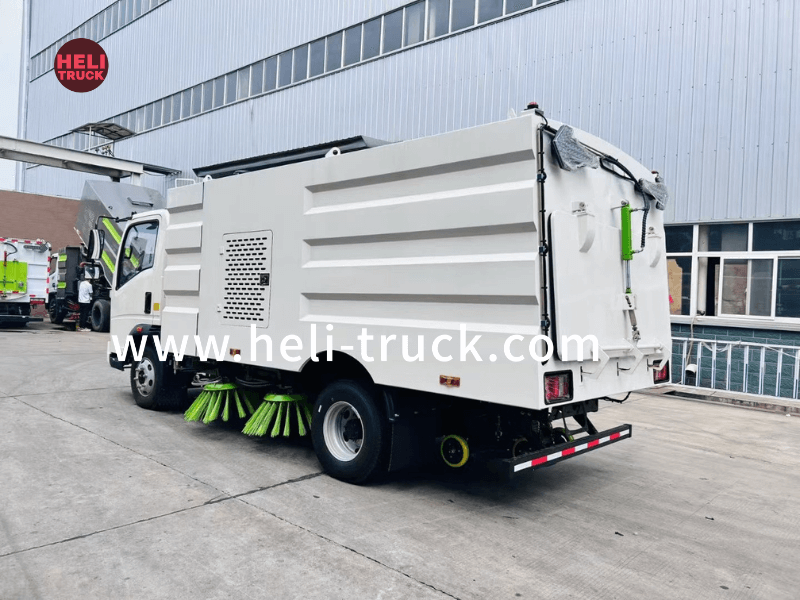

| Vehicle name | Howo 5m3 street sweeper truck | |
| Overall Dimension | About 6320x2000x2660 mm | |
| GVW | 7355 kg | |
| Curb Weight | 5850 kg | |
| Chassis specification | ||
| Cabin | Single row, 2 seats, power steering, air conditioner | |
| Drive type | 4×2 | |
| Wheelbase | 3360 mm | |
| Engine | Model | YN4102QBZL |
| Maximum horsepower | 116 HP | |
| Displacement | 3760 ml | |
| Type | Diesel engine, 4 cylinders in-line | |
| Gearbox | Manual, 5 forward & 1 reverse | |
| Tire Size | 7.00R16, 6+1 spare tire | |
| Upper body specification | ||
| Auxilary engine | Model | JX493-G3, 78HP |
| Fuel type | Diesel | |
| Water tank | 1000L, stainless steel | |
| Dustbin tank | 4000L, stainless steel | |
| Hydraulic system | ||
| Type | Electrical control | |
| Main components | Gear pump, hydraulic motors, hydraulic cylinders, solenoid valve. | |
| Pressure | 16MPa | |
| Hydraulic oil tank capacity | 60L | |
| Oil Temperature | 60 | |
| Electrical system | ||
| Type | DC24V | |
| Voltage | 24V | |
| Battery | 24V | |
| Spraying water system | ||
| Main components | Electric diaphragm pump, water filter, nozzle | |
| Sweeping device system | ||
| Type | Centre installation 4pcs sweeping disc, hydraulic motor drive, the right front can be independently controlled, with functions of avoiding collision response. | |
| Sweeping disc diameter | 850 mm | |
| Sweeping disc-angle | Forward 4-6ă‚ś, outward 4-7ă‚ś | |
| Sucking disc system | ||
| Type | Single suction, hydraulic control, spring suspension | |
| Suction entrance diameter | 200mm | |
