Description

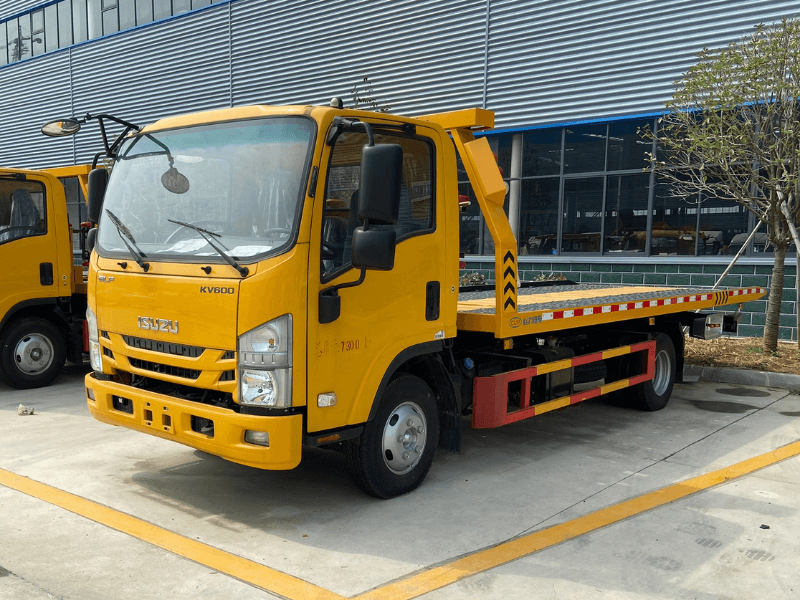

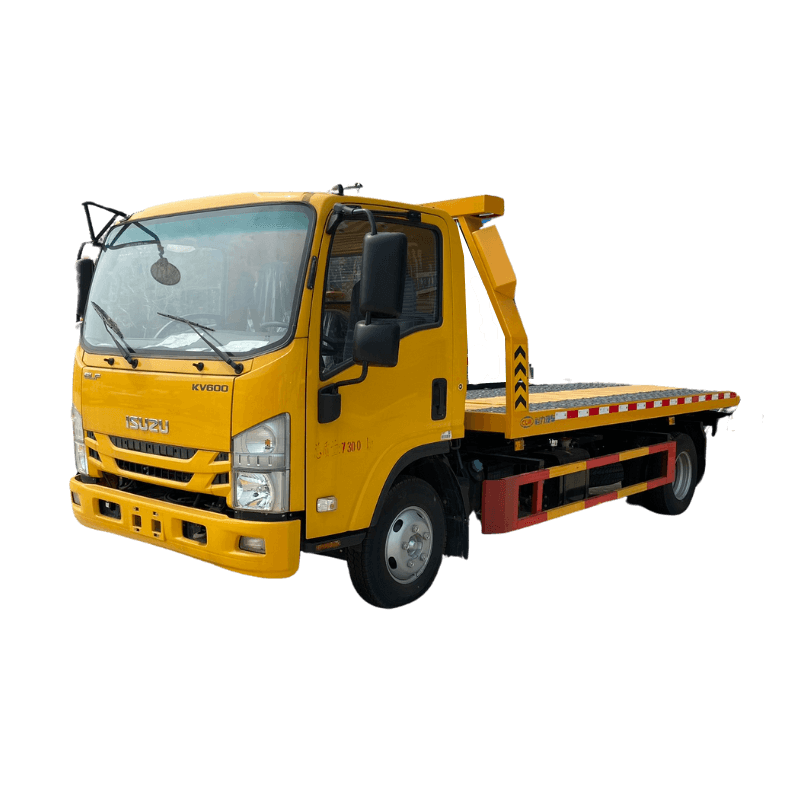

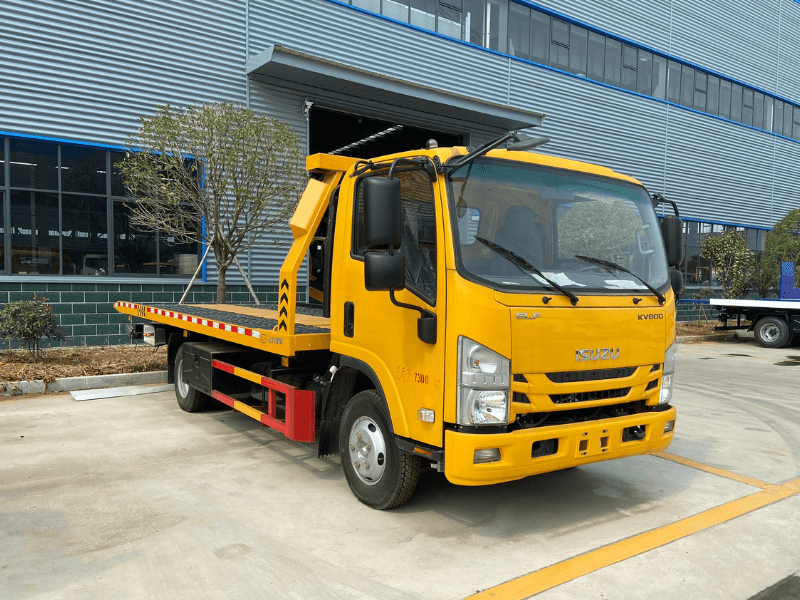

The ISUZU 5-ton flatbed tow truck is a specially designed truck for transporting cars or trucks on a flatbed body, where the truck operator lowers the truck bed and uses a winch to lift the vehicle onto the bed for transport.
The flatbed is 6 meters long and is equipped with a 5-ton hydraulic winch. The flatbed can slide back and tilt to load the vehicle. It also has a wheeled grabber unit at the rear for loading a second vehicle. Cars or vehicles can be efficiently loaded onto the flatbed and undriveable vehicles can be transported. And reduce the possibility of further damage during transportation.
| General Technical Parameters | |||
| Overall Dimension (LxWxH) | 7410x2380x2320(mm) | ||
| Gross Vehicle Weight | 8280 kg | ||
| Curb Weight | 5210kg | ||
| Chassis Specification | |||
| Chassis Parameters | Chassis Brand | ISUZU | |
| Cabin | Single-row, air conditioner | ||
| Engine | Model | 4 Cylinders | |
| Power | 120HP | ||
| Emission Standard | EURO II | ||
| Fuel Type | Diesel | ||
| Gearbox | 5 Forward & 1 Reverse Gear | ||
| Front and Rear Axle Load | 2.5T/4.8T | ||
| Wheel Base | 3815(mm) | ||
| Overhang( Front/Rear) | 1120/2475(mm) | ||
| Angle(Approach/departure) | 23/9(°) | ||
| Brake System | Air brake | ||
| Steering Gear | Power Assistant | ||
| Tire | 7.50R16, 6 Pieces with 1 Spare Tire | ||
| Maximum Speed | 90Â (km/h) | ||
| Superstructure | |||
| Flatbed | Dimensions | 5500×2400 (mm) | |
| Max. Loading Weight | 5000(kg) | ||
| Operating Stroke | 2700 (mm) | ||
| Min. Angle of Slope | 8(°) | ||
| Platform Height from the Ground | 1070(mm) | ||
| Winch | Quantity | 1pc | |
| Winch Rating Pulling Capacity | 5000 (kg) | ||
| Length of Steel Cable | 21 (m) | ||
| Hoisting Organ | Rating Under-Pulling Capacity | 8000 (kg) | |
| Rating Under-Hoisting Capacity | 2000 (kg) | ||
| Fully Extended Max Under-Hoisting Capacity | 1600 (kg) | ||
| Max Under-Hoist Useful Length | 1640 (mm) | ||
| Remarks | 1. Equipped with One Set of Auxiliary Wheels 2. Bandages 4pcs 3. Yellow Warning Lamp 1pc 4. Double Side Hydraulic Operation 5. Can Tow 2 Cars |
||
