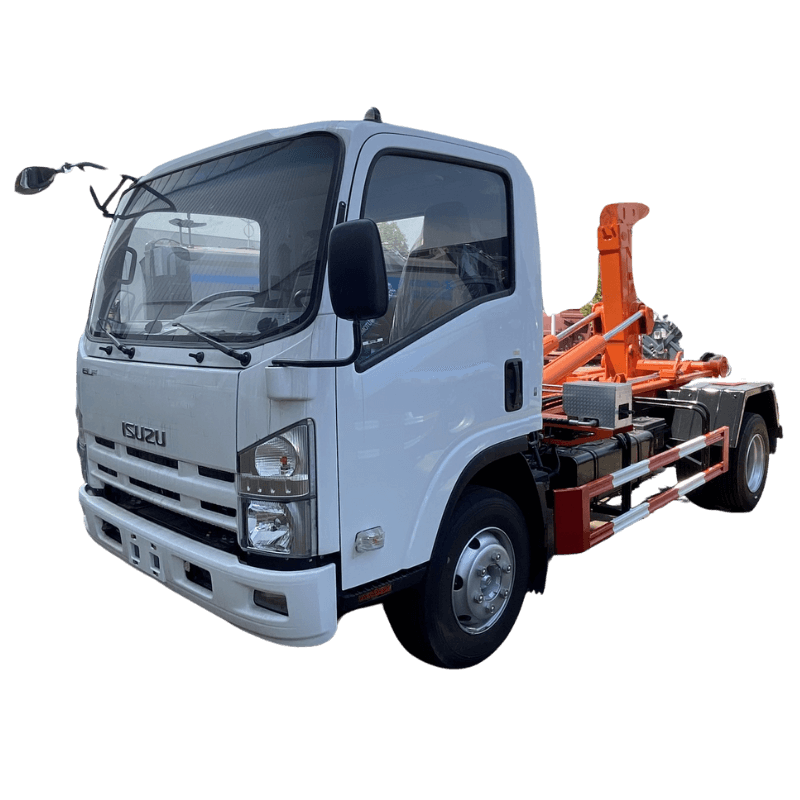

Isuzu 7 ton Roll Off Garbage Truck

Isuzu 7-ton roll-off garbage truck equipped with a 4HK1-TCG40 engine and Isuzu MLD gearbox.

The hook arm has a lifting capacity of 7 tons.

Description

Hook loader truck also known as hook lift truck, hook arm truck, dumpster truck, roll off garbage truck, is designed to transport urban waste and construction waste

Why choose this Isuzu 7 ton Roll Off Garbage Truck

  1. Reliable, Durable

The chassis adopts Isuzu high-quality chassis.

The truck is equipped with a 4HK1-TCG60 engine, with a maximum engine power of 190 horsepower.

The hook lifting system has a maximum lifting capacity of 7 tonnes.

  1. Cost-Effective

One vehicle can be used for garbage collection and transportation to multiple collection points.

Cabin Single row, With A/C, 2 seats, electrical window lifter, central lock
Vehicle Dimensions Overall dimensions
(L x W x H) mm
7300Ă—2500Ă—3300
Wheelbase (mm) 3815
Wheel track (front/rear) (mm) 1996/1830
Truck weight (KGS) Tare weight 11400
Recommend payload 10000-15000
Front axle load capacity 7000
Rear axle load capacity 14000
Max. driving speed(km/h) 102
Engine Manufacture Isuzu
Model 4HK1-TCG60
Type Straight 4-cylinder in line, Turbocharge with inter-cooling, diesel engine
Displacement(L)
Engine power(hp)
Engine displacement:5.193L
Power:190HP
Emission standard Euro 3
Gearbox ISUZU MLD, Manual operation, 6 forward gear, 1 reverse gear
Steering Hydraulic steering with power assistance
Tire 295/80R22.5, 6+1 pcs (including one spare tire)

Upper-Body Parameters:

Garbage container effective volume(CBM) About 8-10 cubic meter
The Hooking Capacity(T) 7
The Hook arm material Q40, Q50 high-strength steel
System pressure(Mpa) 26
Control voltage(V) 24
The hook arm self weighs (kg) 2300
Extension of hook arm(mm) 800-900, or other specifications based on a different model
Hydraulic Oil pump displacement(Min/L) 60, made in China or import pump
Hydraulic oil tank capacity(L) 110L or more
Loading/unloading cycle time(S) 45S or less
The hook center height(mm) 1570 or other specifications based on a different model
Distance from hook center to rear roller(mm) 4630 or other specifications based on a different model
Width of guild rail(mm) 1060 or other specifications based on a different model
Hydraulic oil pump  Hefei pump in China, or import pump
