Description

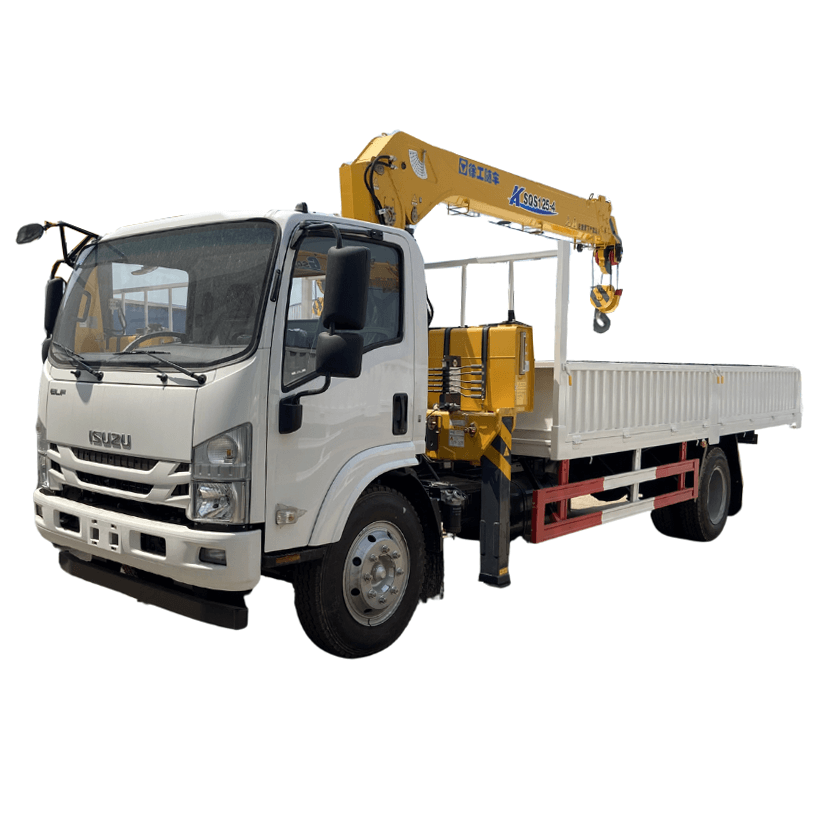

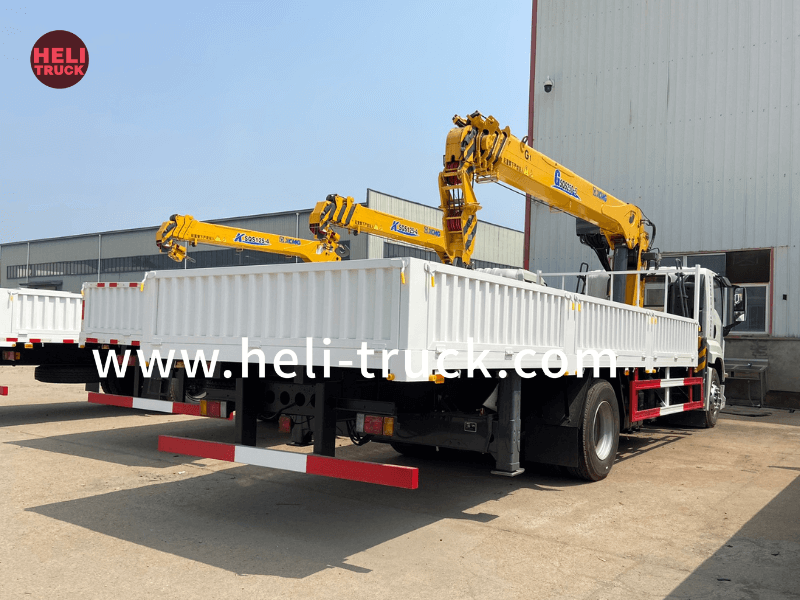

This Isuzu truck-mounted telescopic boom crane is hot selling in Africa and many countries. the crane has a maximum lifting capacity is 5 tons at a 2.5m working radius
Crane brands available:
XCMG, Palfinger, HYVA.
Optional boom types:
Telescopic boom crane or knuckle boom crane
Recommended crane lifting capacity options:
5 ton, 4 ton
Cargo body size:
5000x2200x400mm
Crane working radius and lifting height
This depends on the lifting capacity of the crane selected, let us know the lifting capacity at the required working radius and we will recommend a product that can meet your requirements.
| Truck Specification | ||
| Vehicle name | ISUZU Truck Mounted Crane 5 ton | |
| Overall dimension (L*W*H) | About 6800*2550*3670 | |
| GVW | 12000 kg | |
| Tare Weight | 6230 kg | |
| Rated Loading Capacity | 5620 kg | |
| Chassis Specification | ||
| Cabin | Single row, 3 seats, power steering | |
| Drive Type | 4×2 | |
| Wheelbase | 4500 | |
| Engine | Model | 4HK1-TCG60 |
| Maximum horsepower | 190 HP | |
| Displacement | 5193 ml | |
| Type | Diesel engine, 4 cylinders in-line | |
| Gearbox | Manual, 6 forward & 1 reverse | |
| Tire | 235/75R22.5 | |
| Upper body specification | ||
| Platform | Length x Width | 5000x2250x400 mm |
| Loading capacity | 8 ton | |
| Crane | Crane lifting capacity | Can choose 5ton |
| Boom type | Straight boom or folding boom | |
| Crane brand | XCMG / SANY PALFINGER or other brands | |
