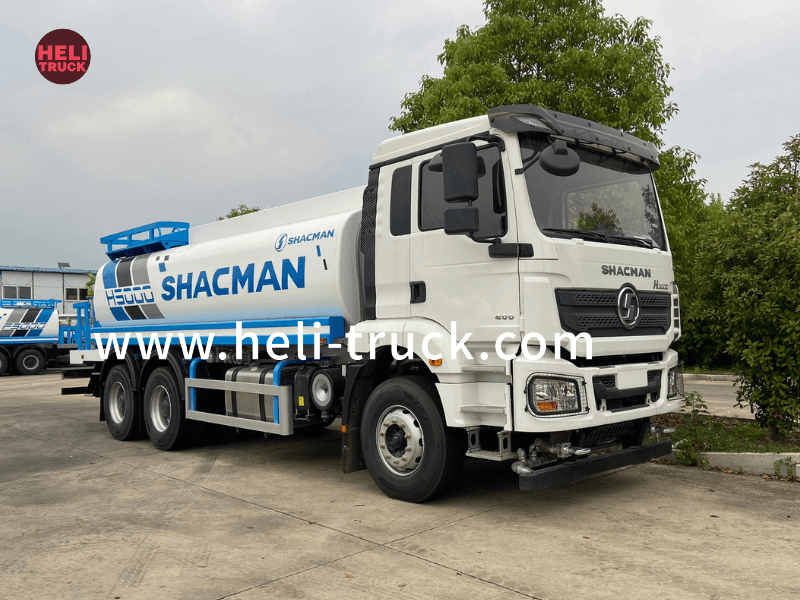

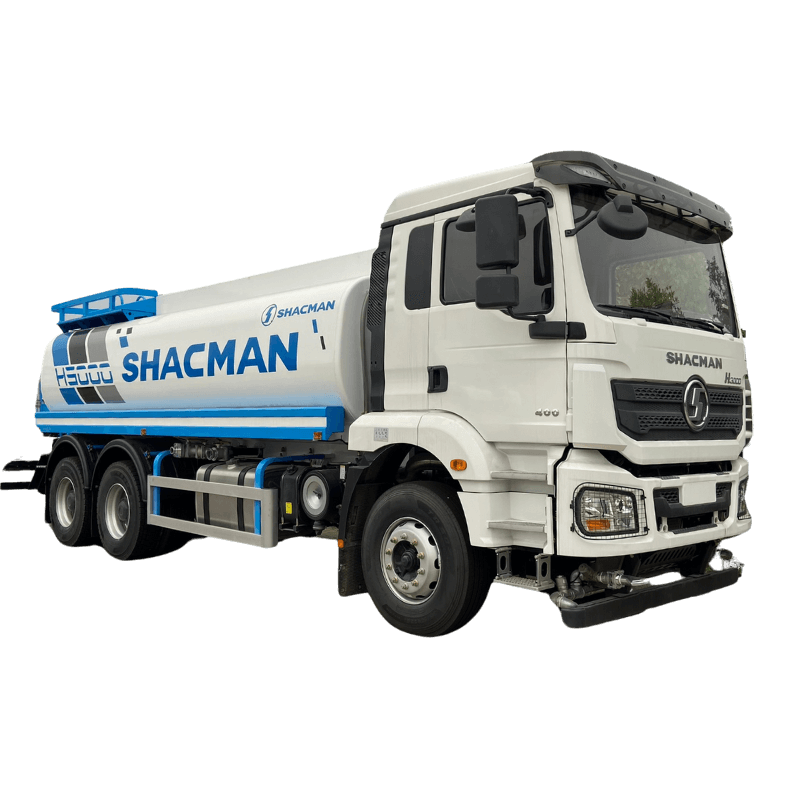

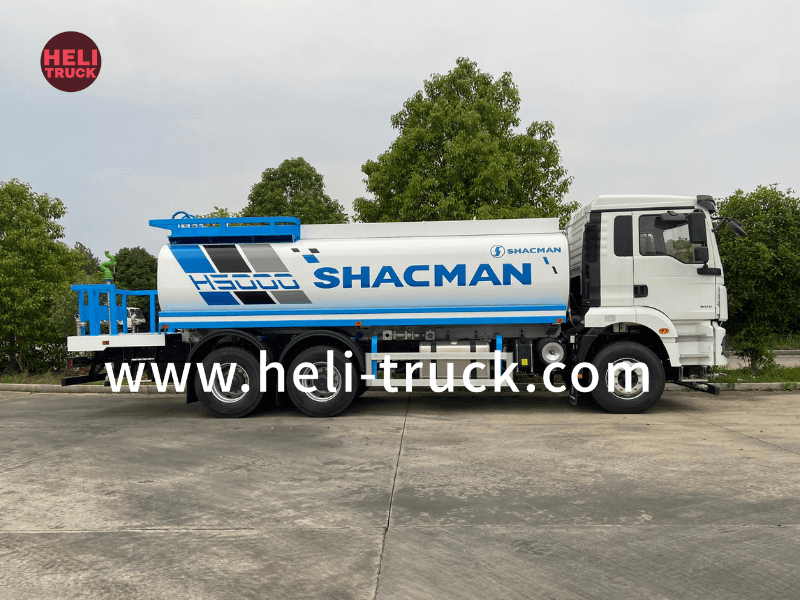

Why choose this Shacman H3000 20000 liters water tank truck
- The water tank is mounted on Shacman H3000 high-quality chassis, with a maximum engine power of 300 horsepower.
- The water tank body is made of 5mm thickness carbon steel, the water pump is self-priming type, we use China’s top brand.
- The truck has a wide application, transports water, dust suppression, and road cleaning, and also can be used for fire fighting in an emergency.
| Vehicle Description | ||
| Overall dimension | 9140*2550*3055mm | |
| GVW | 18000kg | |
| Curb weight | 10150kg | |
| Chassis brand | Shacman | |
| Traction type | 6*4, left-hand drive / right-hand drive | |
| Chassis Description | ||
| Chassis model | SX5255 | |
| Cab | Single row and a half, 2 seats, air conditioner, central lock, electrical window glass | |
| Wheelbase | 4475+1400 mm | |
| Tire specification | 12.00R20 | |
| Tire quantity | 10+1 units | |
| Engine | Engine model | WP10.300E22 |
| Emission level | Euro 2 | |
| Displacement | Â 9726 ml | |
| Horsepower | 191 kW / 300hp | |
| Gearbox | Brand | FAST |
| Number of gears | 9 forward gears& 1 reverse, synchronized | |
| Brake system | Full air brake system split pneumatic circuit; parking spring brake acting on rear axles, exhaust brake | |
| Axle | Front | 7.5 Ton MAN |
| Rear | 16 Ton MAN | |
| Suspension | Front | 8- Leaf spring with shock absorber |
| Rear | 10+8-Leaf spring | |
| Fuel tanker | Type | Aluminum alloy fuel tank, with lockable cap |
| Capacity | 300L | |
| Upper-part description | ||
| Water tank | Capacity | 20000 liters |
| Material | Carbon steel | |
| Thickness | 5mm | |
| Standard configuration | Equipped with the rear working platform; Equipped with water pump; Equipped with a fire hydrant, ball valve, and filter gauze. |
|
